- All-in-one box extensometer
- Ideal for general tensile tests
- For up to 500 mm measuring area
- Stackable for joined fields of view
![X-Sight 4000-D Optical Extensometer 1 Extensometer ONE product photo](https://www.xsight.eu/wp-content/uploads/2023/12/productintro_bg-1.jpg)
![ONE L](https://www.xsight.eu/wp-content/uploads/2023/12/ONE_L-450x900.png)

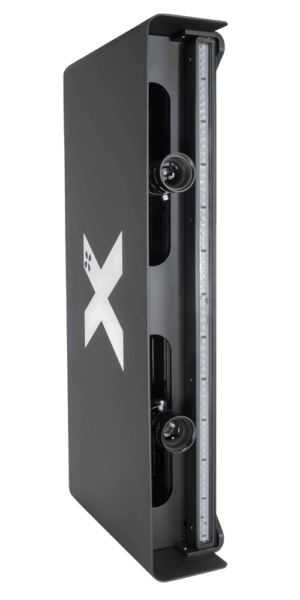

The X-Sight 4000-D series is a universal optical extensometer equipped with two cameras to obtain a bigger field of view; as such, it is suitable for longer or more elongating specimens.
The X-Sight 4000-D series VE provides multiple values simultaneously, so measurement at different positions or with different gauge lengths is possible.
X-SIGHT 4000-D TECHNICAL DATA
XSight-4101-D | XSight-4102-D | XSight-4105-D | XSight-4109-D | XSight-4116-D | |
---|---|---|---|---|---|
RESOLUTION | 2 × 1.3 MPx | 2 × 2.3 MPx | 2 × 5 MPx | 2 × 8.9 MPx | 2 × 16.1 MPx |
FPS AT FULL RESOLUTION | 170 Hz | 43 Hz | 75 Hz | 32 Hz | 23 Hz |
MEASUREMENT LENGTH CLASS 0.5* | 150 or 2 × 80 mm | 200 or 2 × 110 mm | 240 or 2 × 130 mm | 420 mm | 640 mm |
MEASUREMENT LENGTH CLASS 1* | 300 or 2 × 160 mm | 360 mm | 520 mm | 840 mm | 1280 mm |
MEASUREMENT LENGTH CLASS 2* | 600 mm | 720 mm | 1040 mm | 1680 mm | 2600 mm |
INTERFACE | USB 3.0 | ||||
LIGHT | L400 | ||||
LENSMOUNT | C |
*compliant to ISO 9513
Inquire About X-Sight 4000-D Series Extensometer
We are delighted to assist you with any questions or inquiries regarding our 4000-D series dual camera optical extensometer. Please fill out the form below, and one of our experts will get back to you promptly with the information you need.
